48V TEC Air Conditioner

Basic Info

Model No.: TEC-200W

Type: Cabinet Air Conditioner

Capacity: 9000 BTU

Usage: Room

Indoor Machine Noise: >50dB

Certification: CCC, RoHS, MEPS, CE

China Energy Efficiency Standard: Level 3

Cooling/Heating: Cooling Only

Power Source: Electrical

Power Type: AC

Condition: New

Temperature Control Range: 20℃ To 55℃

Ambient Temperature: -5℃ To 20℃

Refrigerant Gas: R22

Power Consumption: 1496W

Power Supply: DC 48V

Cooling Capacity: 200W

Net Dim. (L X W X H): 183*380*184

Rated Current Input: 6.5A

IP Level: IP55

Weight: 8.5kg

Additional Info

Packaging: Wood Box

Productivity: 500sets/Month

Brand: TENTCOOL

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 20sets/day

Certificate: ISO9001, ISO14001

HS Code: 8415812001

Port: Shanghai,Taizhou,Any Port of China

Product Description

The unit is designed for communication or related industrial equipment applications and design of high performance TEC. Please use the DC 48V power, the significance of installing it is control internal temperature of the cabinet (normal work to a closed state), Keep internal temperature of the cabinet between 24 to 40 degrees Celsius, to ensure that all the thermal elements in cabinet can work normally and play the best performance.

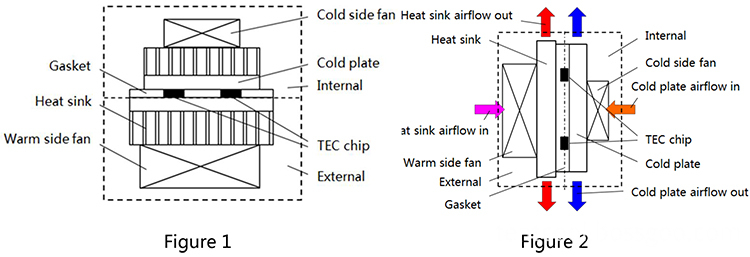

TEC include TE module, gasket, cold plate, heat sink, cold side fan, warm side fan and controller.When TEC unit be feed by DC supply, the TEC chip one side cold, another side warm. Energy arising from the cold (warm) side respectively through the cold plate heat sink and fan spread to the surrounding environment. Internal are make up of cold plate and cold side fan, are used to down temperature of cabinet inner. External are make up of heat sink and warm side fan, are used to spread heat to ambient. As shown in figure 1 ,Figure 2 System composition diagram
