Portable Air Conditioning Unit for Tent

Basic Info

Model No.: TTAC-07HCWa

Type: Portable Air Conditioner

Capacity: 24000-27000 BTU

Usage: Room

Indoor Machine Noise: 24-35dB

Certification: CCC, RoHS, CE

China Energy Efficiency Standard: Level 3

Cooling/Heating: Cooling/Heating

Power Source: Electrical

Power Type: AC

Condition: New

Refrigerant Gas: R410a/1.9Kg

Power Supply: 1PH,220V/50HHZ

Cooling Capacity: 24000BTU/7KW

Heating Capacity: 24000BTU/7KW

Compressor Model No.: GMCC PA330X3CS

Cooling Temp Range: 20℃ To 55℃

Heat Pump Tep Range: -10℃ To 20℃

Electricity Heat Range: -45℃ To 20℃

Net Dim. (L X W X H): 740*620*1120

Additional Info

Packaging: Wood Box

Productivity: 500sets/Month

Brand: TENTCOOL

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 20sets/day

Certificate: ISO9001, ISO14001

HS Code: 8415812001

Port: Shanghai,Taizhou,Any Port of China

Product Description

The Portable Air Conditioning Unit for Tent unit adopts branded components and intelligent control system. The Portable Aircon for Camping Unit is highly automatic, safe and reliable, and energy-saving. The Tents with Air Conditioning for Sale providing ventilation, cooling, dehumidification and heating and filtered air to tent, The Air Conditioning Units for Tents install of  is very easy, just one person can finish the install within 1 mins, save your time and labor cost.

The TTAC-07HCWa air conditioner (cooling output 7 kW) is developed primarily to provide air conditioning in temporary or transportable buildings or tents. It is a small, lightweight unit made of aluminium and built into a rigid steel frame. The unit is designed to be placed outside, with supply air and return air duct to the tent.

For field hospitals where a higher filtration than for normal accommodation is needed, a dual filtration system for the internal air path is available. It can provide cooling at ambient temperatures up to 60°C. The TTAC-07HCWa   can supply Heating and also equipped with an electric heating coil, to provide heating, for example, at night time when temperatures can fall under 20°C. All sheet metal parts are protected against corrosion by a minimum 80µm top coat.

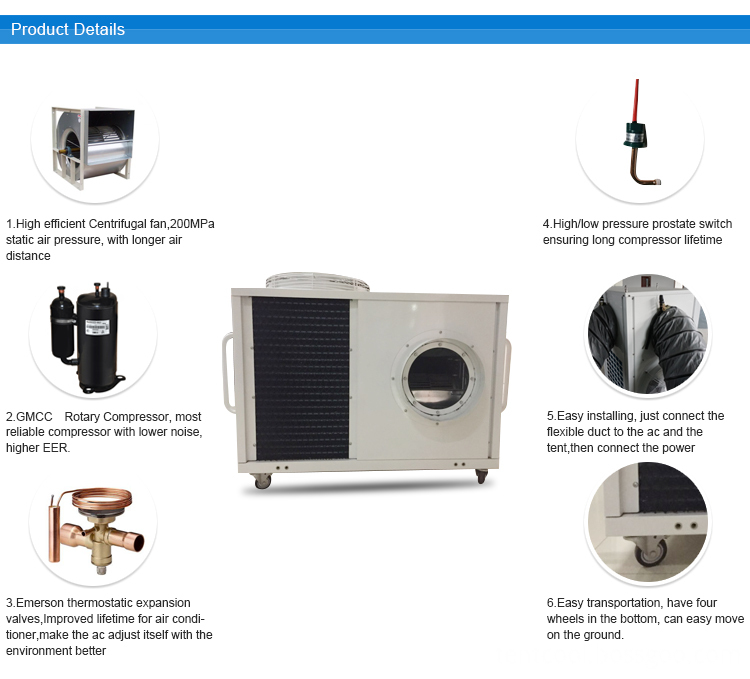

• Easy installing, just connect the flexible duct to the ac and the tent,then connect the power, then tent air conditioner can start to work;

• Quick installing, one person just one minute can finish the install.

•The AC is built into a cabinet manufactured from 1mm galvanized and powder coated steel sheet;

•Top finish painting is standard Olive green, also painting according customer needs;

•Can provide cooling at ambient temperature up to +55℃, provide heating at ambient temperature at -10℃;

• Environment-friendly R410a refrigerant gas;

• High/low pressure prostate switch ensuring long compressor lifetime;

• Emerson or Danfoss expansion valve can make the ac adjust itself with the environment better;

• Connect to the mains power supply or a separate diesel generator through a 7.5 m power cable;

• Temperature control by a room thermostat placed inside the tent;

• Inlet and discharge openings for one Ø380 mm insulated flexible hose, thus allowing the air conditioning unit itself to be set up outside;

• Easy transportation, have four wheels in the bottom, can easy move on the ground.

       Military Tent Air Conditioner for Hungary Military                Mobile Cooling and Heating for UAE UN Peace Keeping Force

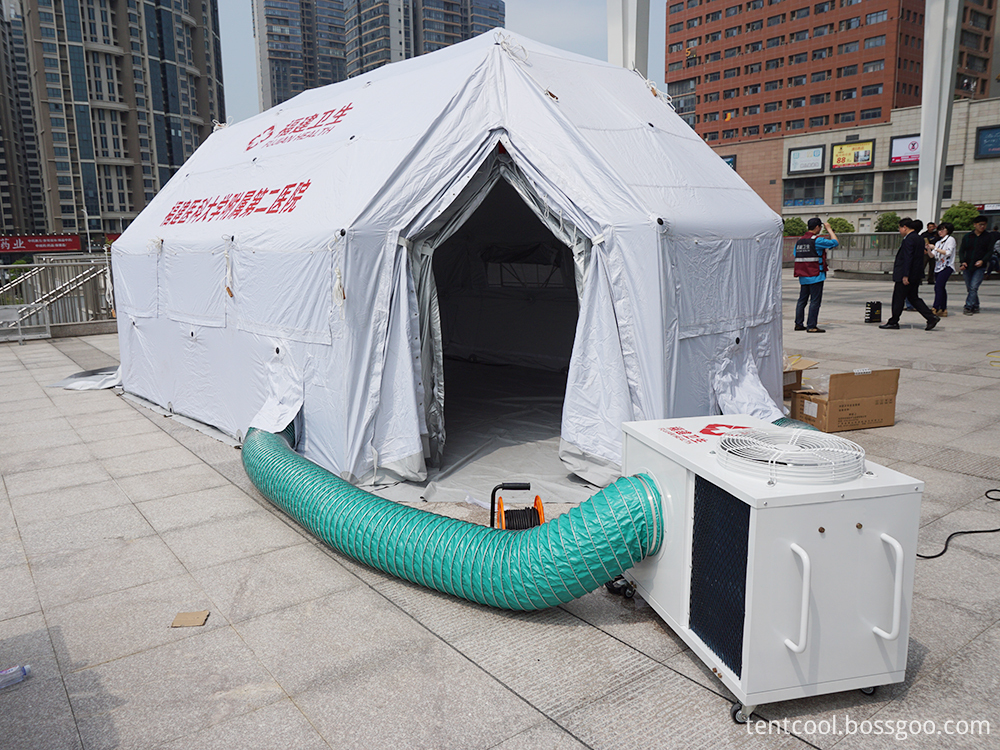

    China Guizhou Field Hospital air conditioner                China Fujian Province Field Medical Rescue Team

      Fire Fighter Sleeping Cabin Air Conditioner                     Fire Fighting Camp Cabin Air Conditioner

      Airplane Parking Air Conditioner                            Aircraft Ground Service & Maintenance Air Conditioner

TENTCOOL is a diversified, high-tech and internationalized modern company focusing on energy efficient climate control solutions within cooling, heating and dehumidifying. The key products include Mobile Cooling & Heating Air Conditioners, Cabinet Air Conditioners and other air conditioning units for speical use or with customized design.

TENTCOOL endeavors to offer market-demand products, develop existing and new customer relations. The products are specially designed and supplied to military and humanitarian organizations, as well as special apartments or spaces like temporary buildings, accommodation, military camps, relief camps, tents, work camps (oil and gas industry), etc. TENTCOOL warmly welcome the world interested partners working together to making contributions on special climate control demands.
