Tent with Portable Cooling System

Basic Info

Model No.: TTAC-12HCWaS

Applicable industry: Energy & Mining, Other

Out-of-warranty service: Video technical support, Online support, Spare parts

Where to provide local services (in which countries are there overseas service outlets): Germany, Romania

Showroom location (in which countries are there sample rooms overseas): Germany, Romania

status: New

place of origin: China

Operating Voltage: 380/400 VAC

Installation method: Wall / Window Mount

Certification: ce

warranty period: 2 years

Core selling point: Competitive Price, Low Maintenance Cost

airflow: 3000m³/h

Marketing type: Ordinary Product

Mechanical test report: Provided

Video factory inspection: Provided

Core component warranty period: 2 years

Core components: Motor, Engine

Additional Info

Packaging: Wood Box

Productivity: 500sets/Month

Brand: TENTCOOL

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 20sets/day

Certificate: ISO9001, ISO14001

HS Code: 8415812001

Port: Shanghai,Taizhou,Any Port of China

Product Description

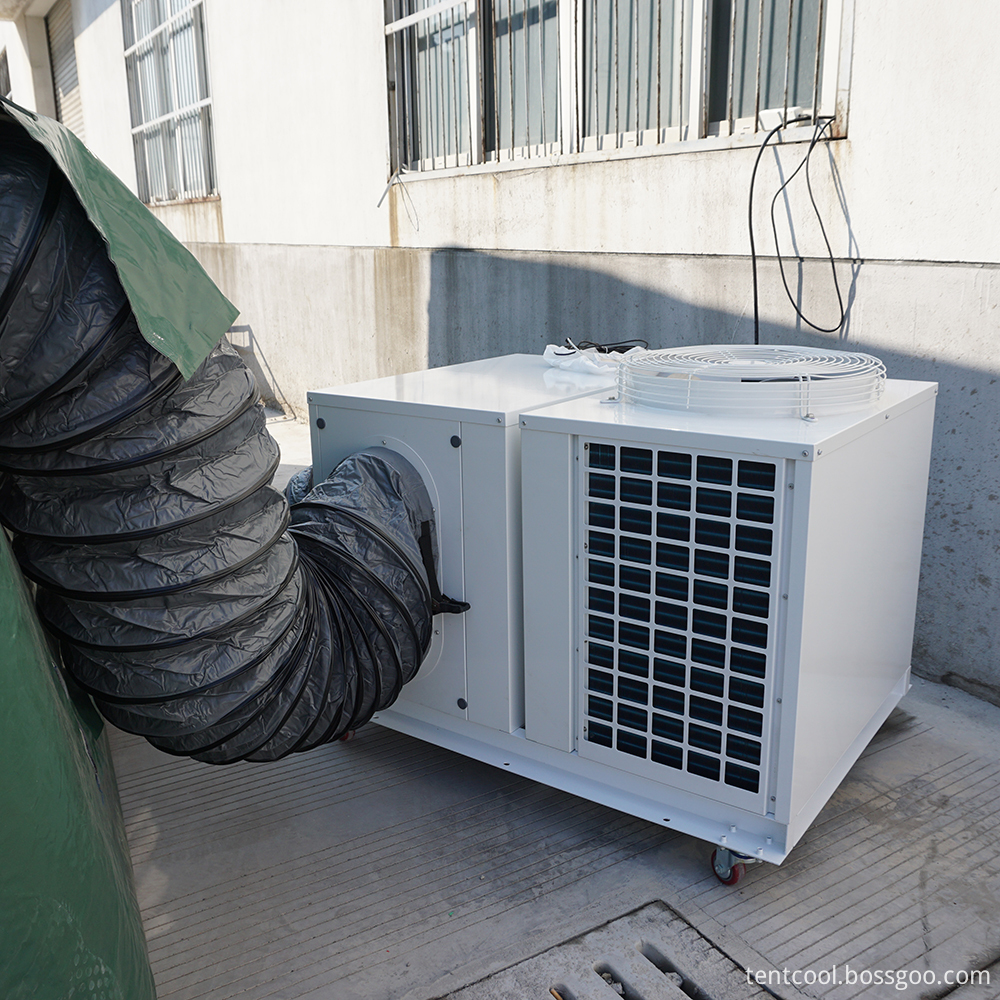

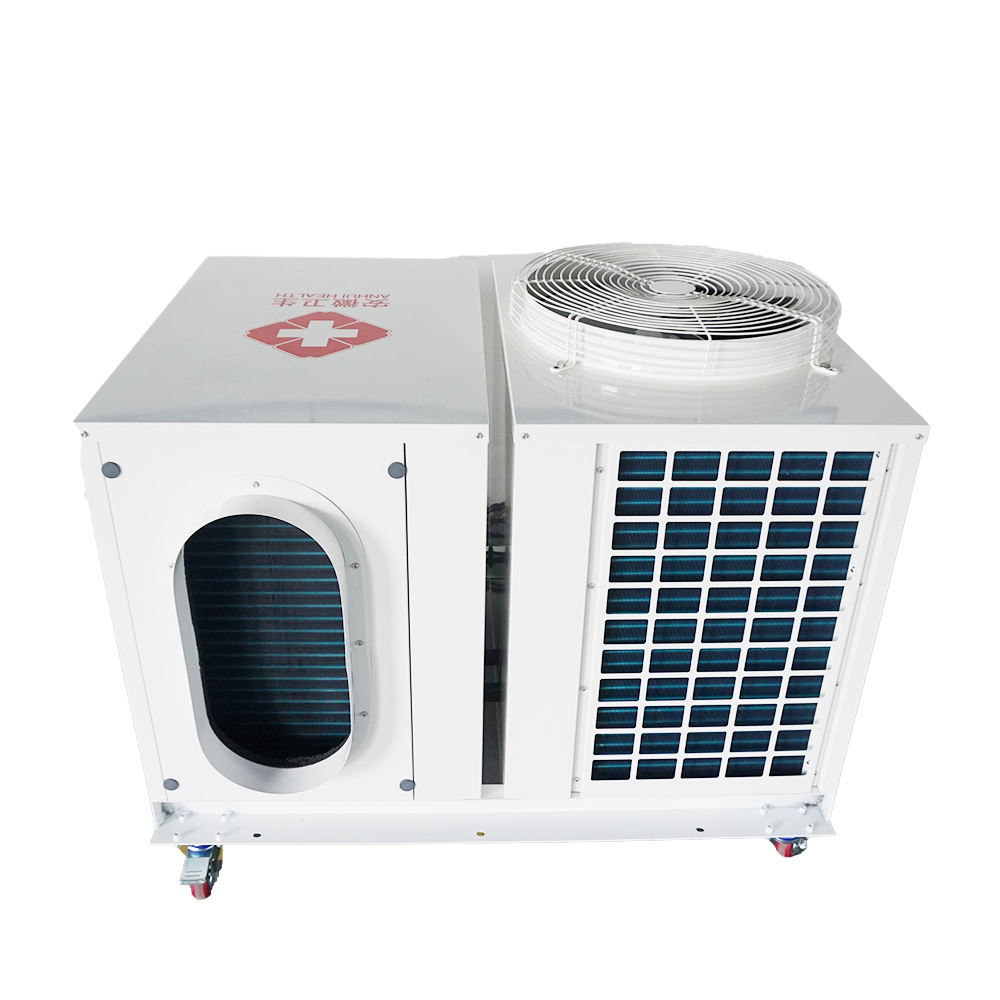

The TTAC-12HCWas Portable Tent Cooler System (cooling output 12 kW) is developed primarily to provide air conditioning in temporary or transportable buildings or tents. It is a small, lightweight unit made of aluminium and built into a rigid steel frame. The unit is designed to be placed outside, with supply air and return air duct to the tent.

For field hospitals where a higher filtration than for normal accommodation is needed, a dual filtration system for the internal air path is available. It can provide cooling at ambient temperatures up to 60°C. The TTAC-12HCWas  can supply Heating and also equipped with an electric heating coil, to provide heating, for example, at night time when temperatures can fall under 20°C. All sheet metal parts are protected against corrosion by a minimum 80µm top coat.

We also have Military Tent Air Conditioner,Event Tent Air Conditioner,Mobile Field Hospital & Medical Air Conditioner,Aircraft Ground Service & Maintenance Air Conditioner,ECU Environment Control Unit,Relief Tent Air Conditioner,Camps Air Conditioner, cooling capacity have 24000BTU,48000BTU, 60000BTU,96000BTU for your choice.

• Easy installing, just connect the flexible duct to the ac and the tent,then connect the power, then tent air conditioner can start to work;

• Quick installing, one person just one minute can finish the install.

•The AC is built into a cabinet manufactured from 1mm galvanized and powder coated steel sheet;

•Top finish painting is standard Olive green, also painting according customer needs;

•Can provide cooling at ambient temperature up to +55℃, provide heating at ambient temperature at -10℃;

• Environment-friendly R410a refrigerant gas;

• High/low pressure prostate switch ensuring long compressor lifetime;

• Emerson or Danfoss expansion valve can make the ac adjust itself with the environment better;

• Connect to the mains power supply or a separate diesel generator through a 7.5 m power cable;

• Temperature control by a room thermostat placed inside the tent;

• Inlet and discharge openings for one Ø380 mm insulated flexible hose, thus allowing the air conditioning unit itself to be set up outside;

• Easy transportation, have four wheels in the bottom, can easy move on the ground.

       Military Tent Air Conditioner for Hungary Military                Mobile Cooling and Heating for UAE UN Peace Keeping Force

    China Guizhou Field Hospital air conditioner                China Fujian Province Field Medical Rescue Team

      Fire Fighter Sleeping Cabin Air Conditioner                     Fire Fighting Camp Cabin Air Conditioner

      Airplane Parking Air Conditioner                            Aircraft Ground Service & Maintenance Air Conditioner

TENTCOOL is a diversified, high-tech and internationalized modern company focusing on energy efficient climate control solutions within cooling, heating and dehumidifying. The key products include Tent air conditioner, Camps air conditioner, Marine air conditioner, Cabinet air conditioner, Dehumidifier, Industry oil cooling equipment,  Industry air conditioner for speical use or with customized design.

TENTCOOL endeavors to offer market-demand products, develop existing and new customer relations. The products are specially designed and supplied to military and humanitarian organizations, as well as special apartments or spaces like temporary buildings, accommodation, military camps, relief camps, tents, work camps (oil and gas industry), etc. TENTCOOL warmly welcome the world interested partners working together to making contributions on special climate control demands.
